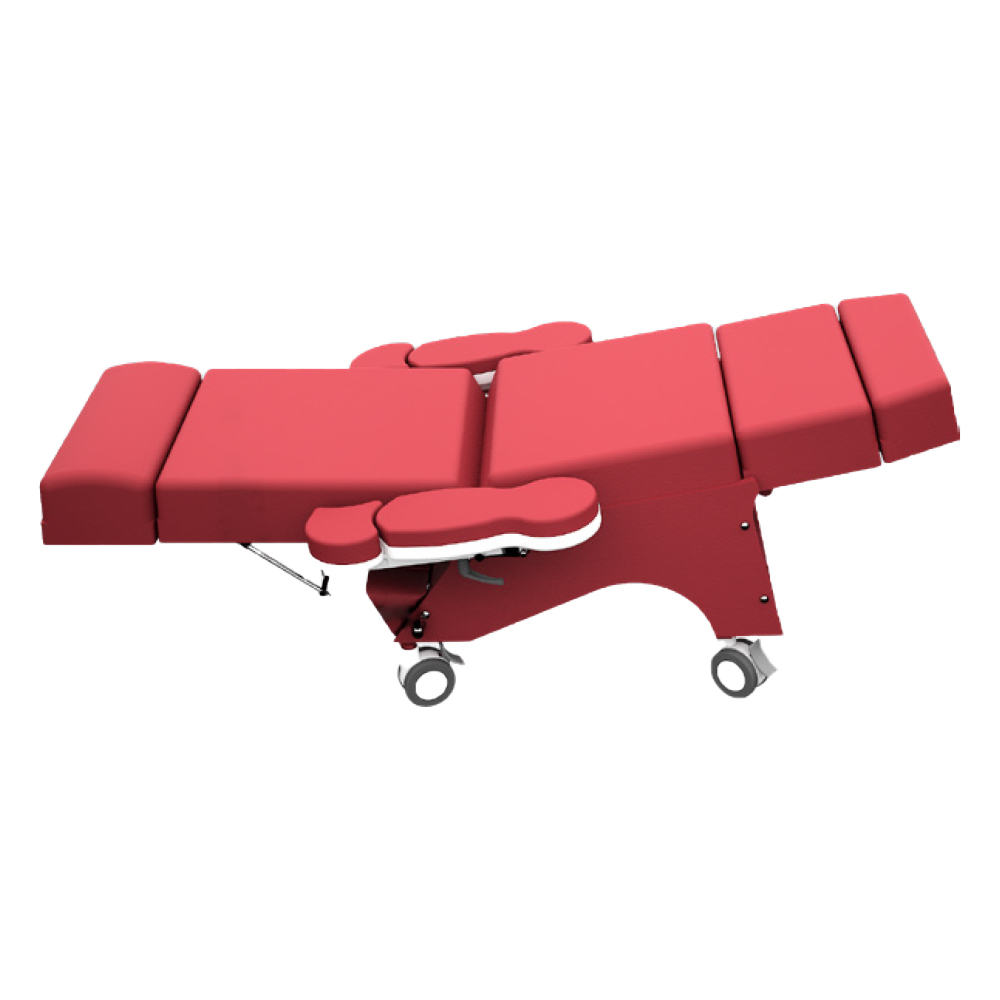

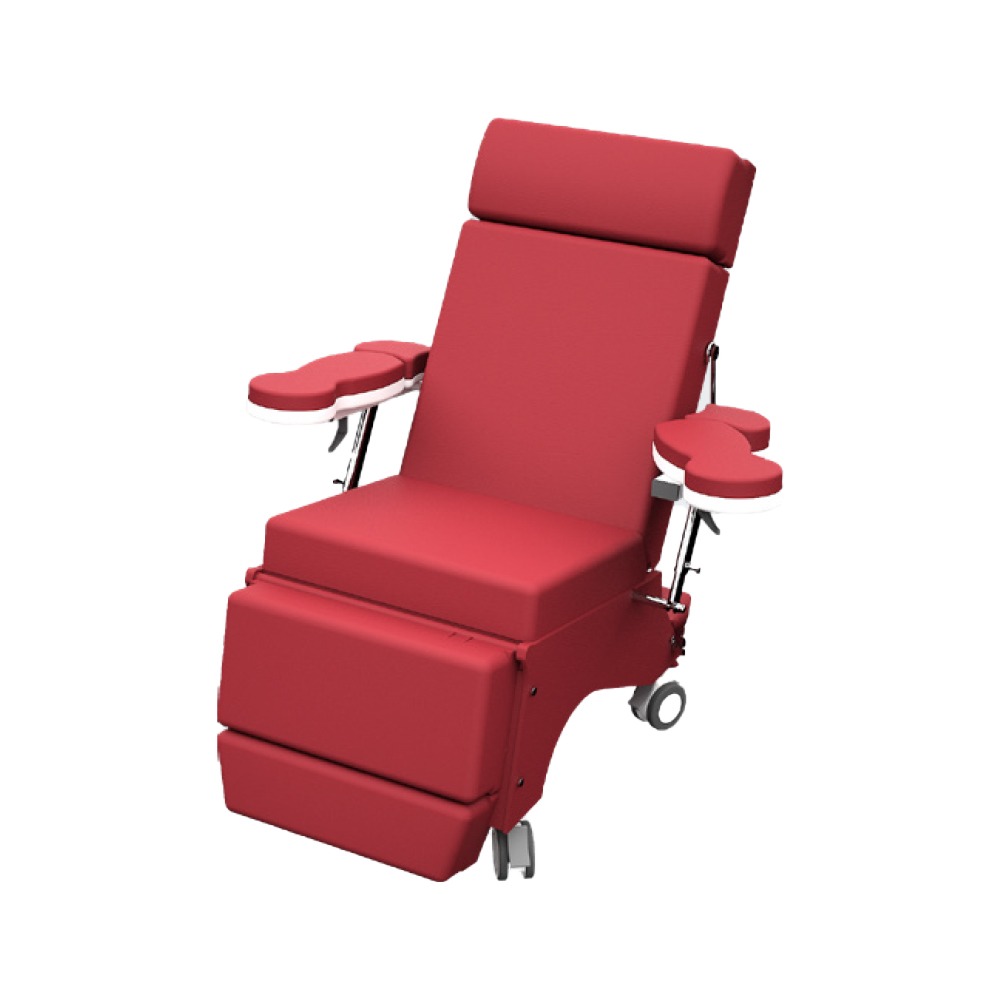

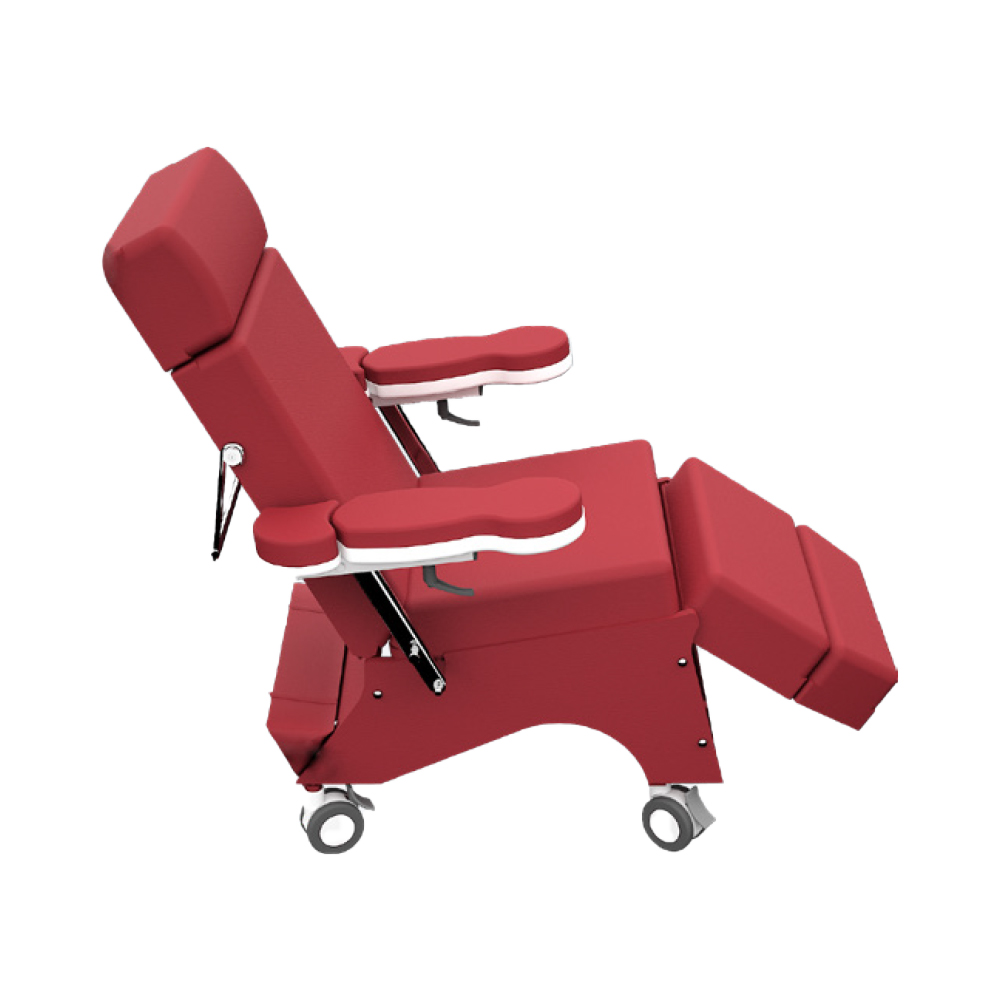

Position Of The Bed
- There are 3 parts as; seat, back and foot
- Back, foot adjustment are done by 2 motors and the desired position is provided.
- The head and foot extensions can be backed – forwarded manually and also fixed.
- The arm has 2 parts. They can be adjusted according the patients arm position, left-right movement of the front of the chair arms during the procedure.
- The arms, with the back movement, can move without disturbing the parallel to the ground.
- The casters can be locked separately.
- The upholstery can be optionally produced from viscoelastic foam depending on the client request.
Color Options
Technical Specifications
Width: 86cm
Length: 172cm
Back Segment Length: 59cm
Back Segment Angle: 0-75 ̊
Min-Max Height: 55,5cm
Seat Length: 49cm
Foot Segment Length: 25cm
Foot Cramp Support: 14,7cm
Foot Segment Angle: 75 ̊
Safe Maximum Load: 200kg
Net Weight: 56kg
Gross Weight: 92kg
Shipment Dimension: 91x161x90cm
Standart Accessories
Intermediate Triangle Pillow
Optioanal Accessory
Infusion Pole
Paper Roll Holder
Viscoelestic Sponge
Soft Cushion
Pillows
